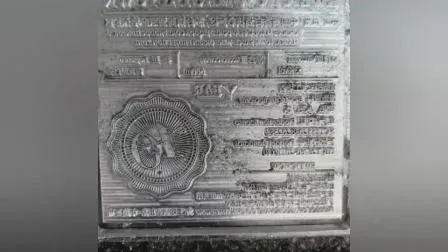

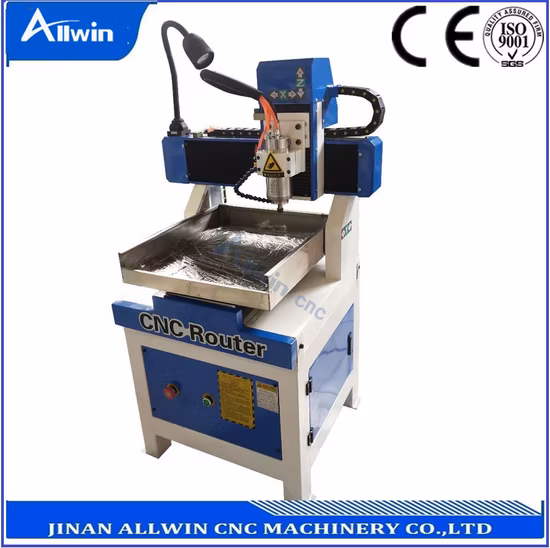

Mini Metal CNC Router 6060 for Metal Alumnium Brass Jade Stone 2.2kw

Applicable Industry: Craft Sculpture/Wood Sculpture/Stone Sculpture/Advertising Industry Applicable Material: Wood/Stone

Model NO.	6060 engraving machine
Certification	CE
Current	AC
Application	Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Customized	Customized
Working Area	400400300mm
Working Voltage	220V,50/60Hz
Operation Mode	Stepper Motor/Hybrid Servo Motor
Cooling Method	Water Cooling
Operating System	DSP Control System
Transport Package	Plywood Packaging
Specification	100010001800mm
Trademark	Songli
Origin	China
HS Code	846599

Applicable Industry: Craft Sculpture/Wood Sculpture/Stone Sculpture/Advertising Industry

Applicable Material: Wood/Stone/Jade/Olive Core/Ceramics/Soft Metal

Functions: relief/carving/round carving/hollowing/milling groove/cutting

Bed	Fine Processing of Square Pipe Welding Machine Tool
Location accuracy	+0.02mm/1000mm
Desk working size	400 mm*400 mm
Repeated positioning accuracy	+0.01mm/1000mm
Z-axis lifting size	100mm
Running instructions	G code, FS command compatible
Spindle type	ordinary constant power
Power supply requirements	three-phase 380v/50HZ or 220V/50HZ
Spindle cooling mode	water-cooled and air-cooled
Spindle power: (accessible)	800W 1.2KW, 2.2KW/3.2KW/5.5KW/6.5KW
Drive system	XY gantry rack double drive
Operating System	Ncstudio
Z-Shaft Drive System	High Precision Ball Screw
Square rail (optional) rack	20 2524 square rail helical rack
Maximum speed	20m - min
Operating Motor (optional)	Stepping Hybrid Servo AC Pure Servo
The fuselage color is optiona	black, red, blue and white
