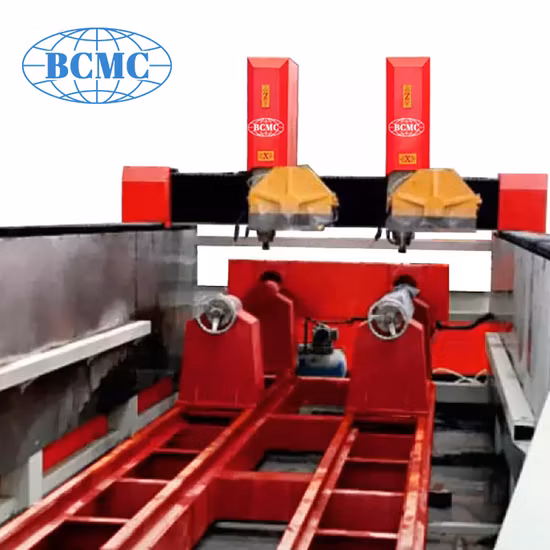

CNC Stone 4 Axis Carving Router
Basic Info
| Model NO. | SSR-1530S |
| Motor Power | High Power |
| Engraving Head Speed Adjustability | Wide Adjustable Range |
| Certification | CE |
| Current | AC |
| Application | Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry |
| Customized | Customized |
| Machine Model | SSR-2030s |
| Working Area | 1500mm*3000mm*400mm |
| Table Size | 1750mm*3550mm |
| Machine Structure | Welded Steel |
| Table Structure | Aluminum T-Slot |
| Spindle Power | 4.5kw, Water Cooling |
| Transport Package | Woonden Package |
| Specification | 1500mm*3000mm*400mm |
| Trademark | SSR CNC |
| Origin | China |
| Production Capacity | 300 Sets/Month |
Product Description
CNC Stone 4 Axis Carving Router SSR-1530S
Features
1.The SSR-1530S marble carving machine bed is made of a thick steel pipe and processed in a high temperature way avoid deformation, thus the bed has good rigidity and high strength.
2.The gravestone cnc router machine is equipped with imported square linear guides with high accuracy, can withstand a large load and provides a long service life.
3.The table is a water tank with a cooling system. The table surface is coated with an aluminum profile with T- grooves to protective plastic.
4.X Y axis use helical gear rack to increase the traction.
5.The dust-proof cover is installed on the X, Y, Z axis, which prevents stone chips and cooling water falling onto them.
6.High power spindle, long service life, stable operation and strong starting characteristics, high torque, which can provide fast processing and higher efficiency.
7.Good electromechanical design, strictly selected tje electrical parts to minimize machine breakdown.
8.On the machine, all cables use a special highly flexible cable,and reciprocating motion can reach 10 million times.
9.Long warranty time(24 months)
Product Parameters
Machine Model | SSR-1530S CNC Engraving Machine for Marble Stone |
Working Area(X, Y, Z) | 1500mm*3000mm*400mm |
Table Size(X, Y) | 1750mmx3420mm |
Machine Structure | Welded steel |
Table Structure | Aluminum T-slot |
Guides of X Y Z | Taiwan imported rail guides |
Transmission of X ,Y | High precision helical gear rack |
Transmission of Z | Ball screw |
Spindle Power | 5.5KW, water cooling |
Collet | ER25 (diameter 3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm) |
Spindle Power | 24000R/min |
Max. Travelling Speed | 25000mm/min |
Max. Working Speed | 15000mm/min |
Control System | NC-STUDIO |
Positioning accuracy | ≤0.01mm |
Processing accuracy | ±0.01mm |
Motor | Powerful 86 SERIES 450B Stepper Motor |
Driver | Powerful LEADSHINE DMA860H Step Driver |
Auto Lubrication System | With |
Water Pump | With |
Work Zero Sensor X, Y, Z axis | With |
Cutter Height Sensor | With |
Wave Filter | With |
Dust-Proof Cover | With |
Working Voltage | AC380V,50HZ |
Net Weight/Gross Weight | 1410KGS/1580KGS |
Package Size | 4010mm*2280mm*1810mm |
Warranty | 24 months |
Optional | -6.0 kw, 7.5 kw water cooling spindle -The rotating device (fourth axis) diameter is 100mm, 160mm, 200mm, 250mm, 320mm -Servo motor and servo driver -Can be customized according customers' special requirements |
Detailed Photos
Working Samples
Applicable Areas:The machine is multifunctional,can be used in various industry, for example: the production of monuments, fireplaces, souvenirs, sculptures, the manufacture of models for foundry, the manufacture of advertising, models of architectural structures and other products made of stone and other materials of high hardnessApplicable Materials:Granite, marble, basalt and other types of stones, tiles, glass, ceramic, metals, as well as wood, plastic and many other materials.
Different Models
We have different models optional, you can choose the suitable machine model according to your materials size.Special order is accepted!
Packaging & Shipping
1. We use international standard exporting plywood package, which is fumigation-free
2. We offer item FOB, CIF, CFR, DDU, EXW by sea:
- FOB: Customer need to find shipping forwarder by himself, take machine from China sea ports
- CIF: We will find shipping find shipping forwarder for customer, arrange sea delivery for customer from China sea port to customer's country sea port, buy sea insurance for customer
- CFR: Under CFR item, customer need to buy sea insrance by himself, other is sampe as CIF item
- DDU: Under DDU item, we arrange machine delivery from our factory address to customer receiving address
- EXW: Customer need to arrange take machine from our factory and arrange all from China sea port to customer's country sea port
3. We can also offer delivery by air for small package machine
