2550 Atc 3D CNC Router Top Selling CNC Machine

Basic Info

Model NO.	2550
After-sales Service	Yes
Warranty	2 Years
Certification	GS, CE, RoHS, ISO 9001
Usage	Woodworking, Metal, Plastic, Glass, Stone, Rubber, Advertising, Mould
Current	AC
Power	High Power
Control	CNC
Drive Type	AC Servo Drive
Spindle Number	Single-Spindle
Customized	Allowable
Color	Optional
Spindle Power	9kw
Transport Package	Plywood
Specification	2500*5000*200mm
Trademark	sea eagle cnc
Origin	China
HS Code	8465990000
Production Capacity	2000 Sets/Year

Packaging & Delivery

Package size per unit product 350.00cm * 220.00cm * 180.00cm Gross weight per unit product 1200.000kg

Product Description

Product Description

1.AC-M25 is common type woodworking machine with high performance configuration.
2.The request on several parts are even higher than of stone router,so that the engraving and cutting work on hard or thick materials could be done easily.
3.Most working need on various materials can be met as a typical of multi-functional machines.

Working area Working area	X	2500mm optional is customized
	Y	5000mm optional is customized
	Z	210 mm optional is customized
Transmission system	X	Hiwin square rail,-No.32, Helical - Rack & Pinion
	Y	Hiwin square rail,-No.32, Helical - Rack & Pinion
	Z	ball screw ,Hiwin square rail.
Spindle	Power	9 kw CC Spindle with 12 pcs tools
	Inverter	AINTEC/SYNTEC
	Rotating Speed	30000rpm
	Cooling Type	water- cooling pump
Drive systems	X,Y,Z	SYNTEC
Precision		<0.01mm
Positioning accuracy		<0.01mm
idling speed		0~30000mm/min
Max speed		90m/min
Working speed		30m/min
Machine body		Steel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel,

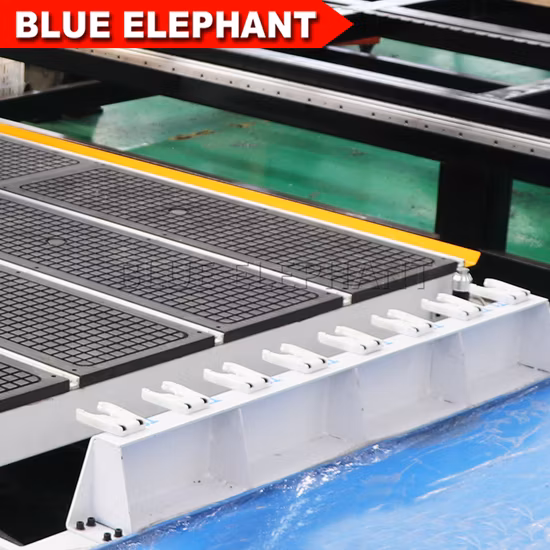

table		vacuum adsorption table.double table
Control System		LNC control system, or SYNTEC system,
Working Voltage		AC380V±30V, 50HZ
Command Code		G Code, *.mmg, *.plt, *.eng
Tool sensor system		Available
Packing		Plywood case
Net Weight		3600KG
Packing Size		5800*1970*1930(mm)
Gross Weight		4000KG
dust collector		7.0 kw 380V
Reducer system		Timing Pulley
vacuum pump		13kw



Product Uses

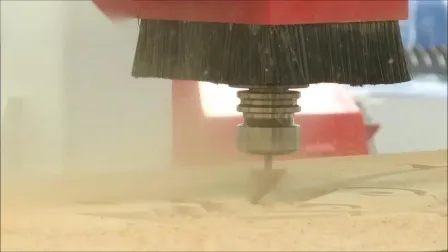

1, spindle



samples



our workshop
